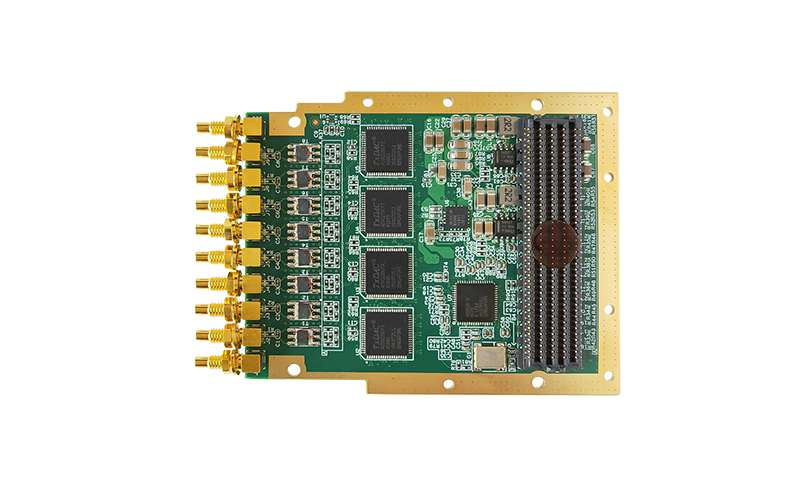

QT7251

Accession The DAC uses 4 ADI ad9122, 8 channels, 16bit, 500ms / s
Accession Sampling clock source supports internal reference clock, external reference clock and external sampling clock
Accession It is mainly used in software radio, array radar and other systems

Main specifications

- four ADI ad9122, 8-Channel, 16bit, 500ms / s are used for DAC;
- the clock adopts AD9516-3, and the selection of internal clock and external clock can be controlled by FPGA carrier board;
- 10 SSMC interfaces, of which 8 are Da output, 1 is reference or sampling clock input, and 1 is synchronous trigger port, which can be set as input or output;
- scope of application: fully comply with vita57.1 specification, including structure, sub card size, panel connector, high limit of front and back devices, greatly providing versatility and adaptability of sub card;
- various heat dissipation modes: air cooling or conduction cooling;
- AC coupled input;
- HPC high pin connector, LPC only supports 5-8 channels of data, and cannot set clock and Da chip through SPI;
- working temperature: commercial grade 0 ℃ - + 70 ℃, industrial grade - 40 ℃ - + 85 ℃;
