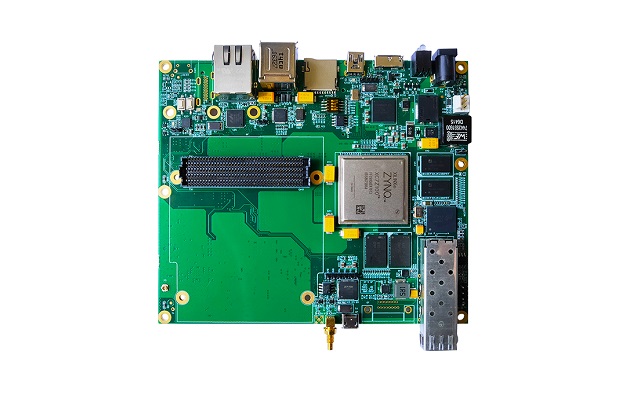

Zynq 100 / 045 FMC FPGA carrier

Main specifications
- multiple compatible SOC chips can be selected flexibly according to needs;
- use zynq-7000soc to design and optimize the embedded application;
- 2-channel SSMC and 13-way j30j general GPIO interfaces are reserved;
- 1GB PS DDR3 (up to 4GB);
- 1GB PL DDR3 (up to 4GB);
- support embedded processing including dual arm cortex-a9 core processor;
- extended I / O, including FPGA mezzanine card (FMC) interface;
- a 256MB QSPI flash and an 8GB EMMC on board;
- on board microSD connector, supporting loading system from microSD card;
- support SPI / SD / JTAG mode configuration loader with jumper cap;
- support one way MINIUSB to UART port to connect computer serial port communication;
- support HDMI external display;
- support one micro USB to JTAG port and one 6pin JTAG port;
- support a can interface of 4Pin;
- support 1 RJ45 network port;
- 1 USB3.0 interface;
- 1 dual USB2.0 interface, which can support USB external devices such as keyboard and mouse;
- support 1 channel USB signal to WiFi wireless transmission;
- 1 SMP + interface;
- 1 m.2 interface;
- support temperature monitoring and current monitoring;
- support fan speed control;
- PCB size: 120mm * 140mm;
