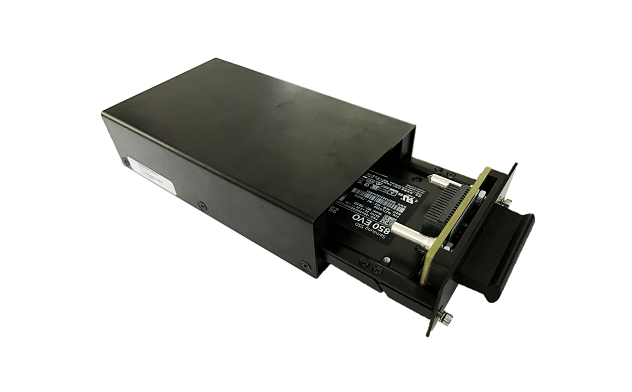

Qtc2000s SDI high speed image acquisition recorder
Qtc2000s SDI high speed image acquisition recorder
SDI access, continuous storage, minimum speed 800MB / s, maximum capacity 4tb
Main specifications
2-way standard BNC interface 3g-sdi input;
The storage rate shall not be less than 800MB / S (two SSDs);
The maximum storage capacity can reach 4tb;
Weight < 700g; < p = >
It can be upgraded to support camera simulation;
Support Ge interface host computer quick view and data export;
The average data export rate is 75mb / s;
Pure cooling without fan design:
-40 ~ 55 ℃ pure passive airless wide temperature working range;
Heat conduction or air flow is added to make it more resistant to high temperature.
