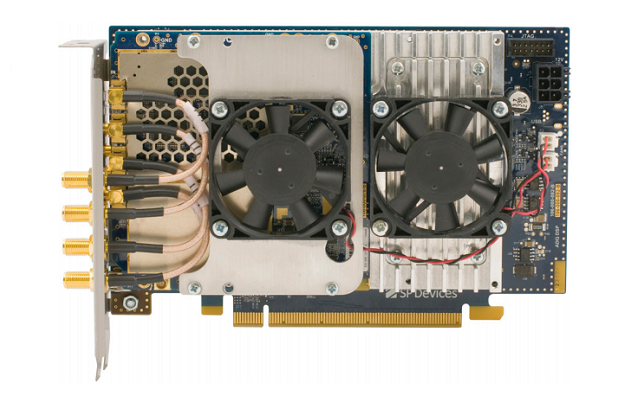

Adq1600-1.6 GSPS, 14 bit RF digitizer

Accession Single channel, 14 bit resolution, 1.6gsps sampling rate
Accession 800 MHz analog input bandwidth and 500 Msamples on board memory

Accession It is suitable for different applications such as if / RF sampling and high speed data recording

Product information

Resolution: 14 bits
Input signal range: 2.2 VPP
Input channel: 1
Trigger: software / extension / level
Clock: integer / extension (SMA)
External clock: 0.25-2vpp
Clock reference integer / extension 10 MHz / pxie
Interface: USB 3.0 / cpie / pxie / PCIe / MTCA. 4 μ TCA
Sampling rate: 1.6 GSPS
Input bandwidth: 750 MHz
Memory size: 512 Msamples
